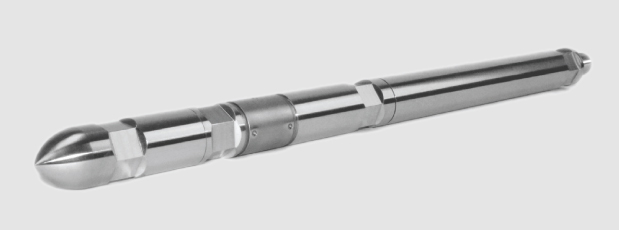

NEO Memory Gauge

The PPS25 NEO Memory Gauge is the latest innovation by PPS. This gauge provides a Smart battery, easy low maintenance handling and programming that can be managed through the PPS Surface Controller or an Android smartphone. The Smart battery has built-in capacity monitoring and is combined with a robust battery connection to ensure maximum shock and vibration resistance. On site the Surface Controller is a standalone device, which connects to a computer through USB or smartphone through Bluetooth. Users can then view gauge diagnostics, depassivate batteries and start or stop logging. PPS has also created an Android smartphone app that can be used to configure the gauge via Bluetooth for added convenience.

Applications

  • Pressure Build-up Tests
  • Pressure Gradients
  • Pre/During/Post Stimulation Evaluation
  • Interference Tests
  • Drill Stem Tests

PPS28-200 Case PPS25 NEO Surface Controller

The SmartView Mini app has a very user friendly interface, where a user can check diagnostics, depassivate batteries and download data.



Specifications

Sensor TypePiezo
Pressure Ranges10K | 15K | 20K | 25K
Pressure Accuracy± 0.03% FS
Pressure Resolution<0.0003% FS
Temperature Rating150 (302 °F) | 177 (350 °F)
Temperature Accuracy± 0.5 °C
Temperature Resolution<0.01

PPS25-NEO °C Specifications (Rev. 01, 2017-09-22)
PDF Icon  PPS25 NEO Technical Sheet
